PEEK 3D PRINTING

High-performance, high-temperature super polymer family with special properties for demanding applications




All uploads are encrypted end-to-end
Peek 3D printing

PEEK can have different microstructures for 3D printing and CNC

Weerg is a PEEK 3D printing and CNC machining  service that helps you choose between the various PEEK materials and  technologies according to the use you will have to make of your parts

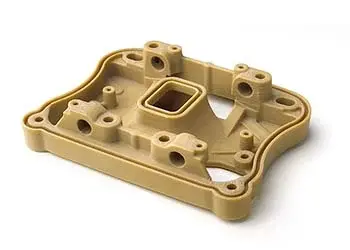

Classic Peek

PEEK

Excellent mechanical properties and chemical resistance that also remains subject to high temperatures.

PROS
Excellent mechanical performance
Excellent resistance to high temperatures and chemicals
Flame retardant
Best option for Metal Replacement cases

CONS
Non-uniform properties on all axes
Difficult to print
More expensive material than others in 3D printing
Low impact resistance

3D printing process: FDM
Tolerance: <100mm ± 0,60mm; > 100mm ± 0,75%
Max size: 300x300x400 mm; 11,8x11,8x15,8 in
Lead time: <3 days

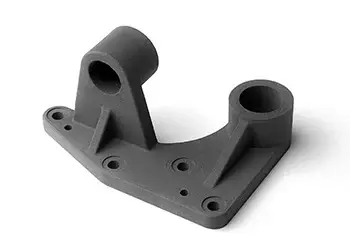

Peek carbon fiber

PEEK CF

PEEK CF is a carbon fibre reinforced composite material that makes it high performance compared to PEEK.

PROS
Outstanding mechanical performance
Excellent resistance to high temperatures and chemicals
Flame retardant
Best option for Metal Replacement practices with challenging performance

CONS
Non-uniform properties on all axes
Difficult to machine
More expensive material than others in 3D printing
Low impact resistance

3D printing process: FDM
Tolerance: 0.6mm<100mm; 0.75%>100mm
Max size: 300x300x400 mm; 11.8x11.8x15.8 in
Lead time: <4 days
Peek glass filled

PEEK GF

Strong, lightweight composite with excellent chemical and thermal resistance. Offers superior strength and stiffness.

PROS
High strength and stiffness
Excellent chemical and thermal resistance
Lightweight and durable
Top choice in electric, aerospace, and automotive applications
Sustainable and recyclable material

CONS
Expensive compared to other materials
Difficult to machine and 3D print
Low impact resistance

3D printing process: FDM
Tolerance: 0,6mm<100mm; 0,6%>100mm
Max size: 300x300x300 mm; 11.8x11.8x11.8 in
Lead time: <4 days


PEEK PEEK CF PEEK GF PEEK CNC
Properties
Tensile breaking load 100 MPa 87,4 MPa 86,6 MPa 101 MPa
Modulus of elasticity 3,7 GPa 8,6 GPa 8,2 GPa 4,4 GPa
Elongation at break 3 % 2,5 % 2,3 % 20 %
Flexural modulus 3612 6338 5713 3612
HDT 0.45 MPa 180 °C 315 °C 299 °C 180 °C
Izod impact resistance 7,1 kJ/m2 9,7 kJ/m2 9,2 kJ/m2 7,1 kJ/m2
Features
Price range € € € € € € € € € € € € € € € € € € € €
Lead time < 3 days <4 days <4 days <3 days
  Learn more Quote Learn more Quote Learn more Quote Learn more Quote

Weerg offers PEEK 3D printing and CNC machining online with the best technologies; not because the seller tells us but because we do all the material tests in house.

Weerg's: online 3D printing and CNC machining with the best technologies

Weerg makes your parts in house and with the best 3D printing and CNC technologies as MJF, SLA, industrial FDM, 5 axes Lathing, Milling and Drilling.
